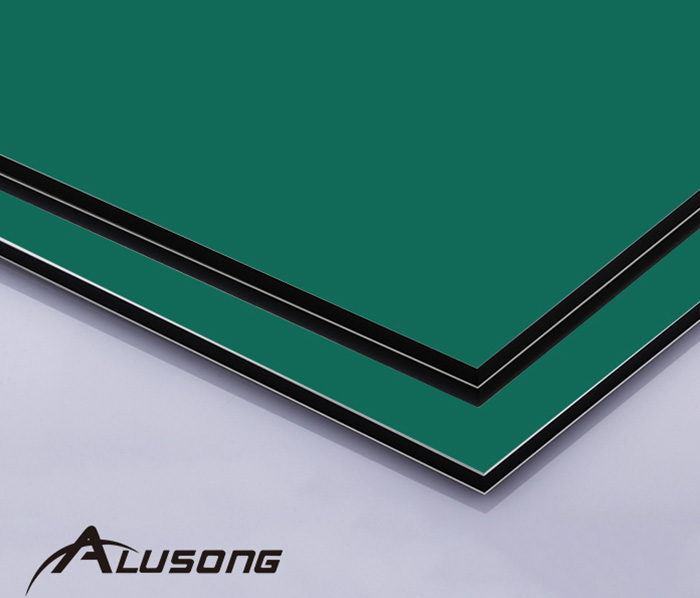

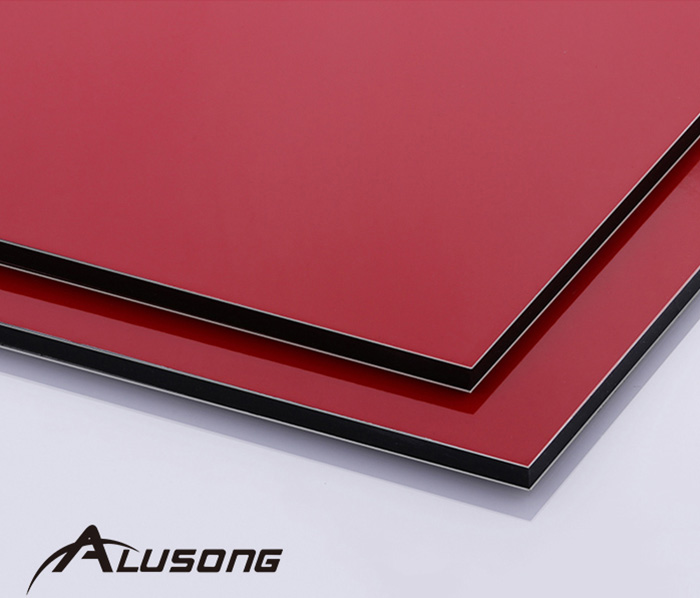

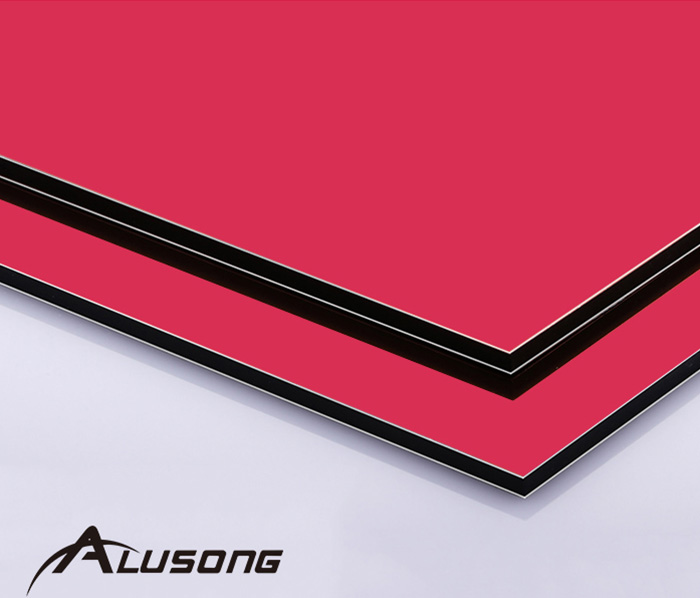

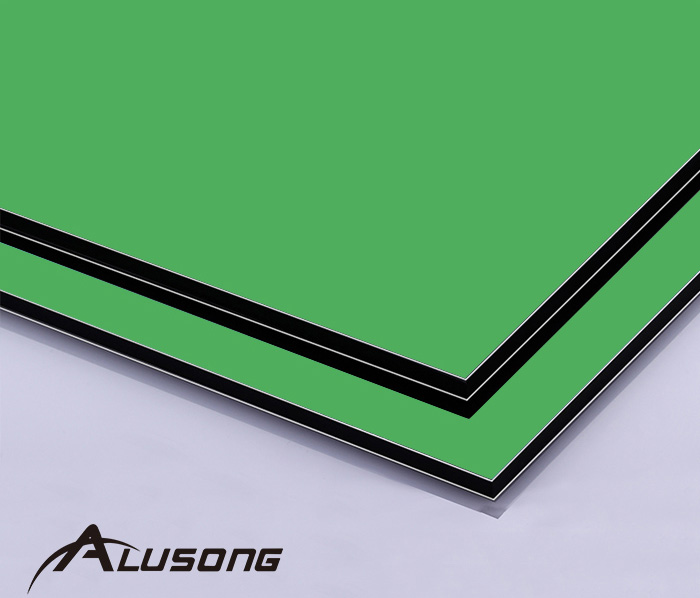

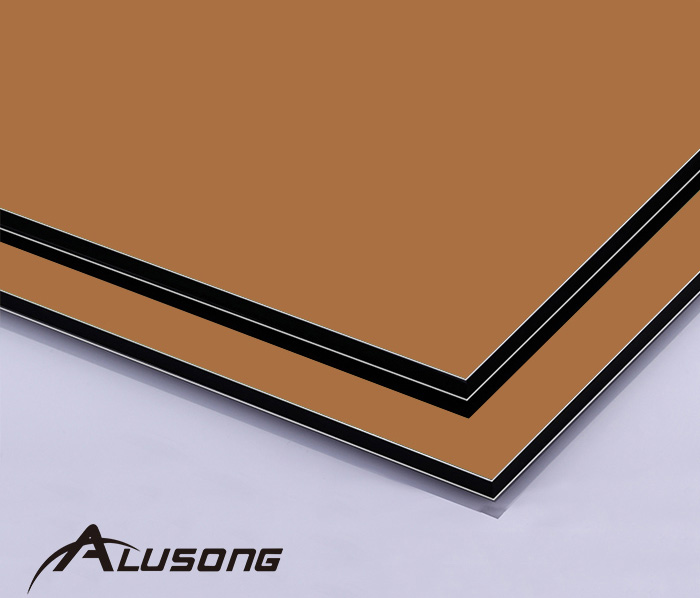

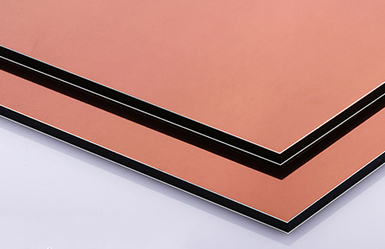

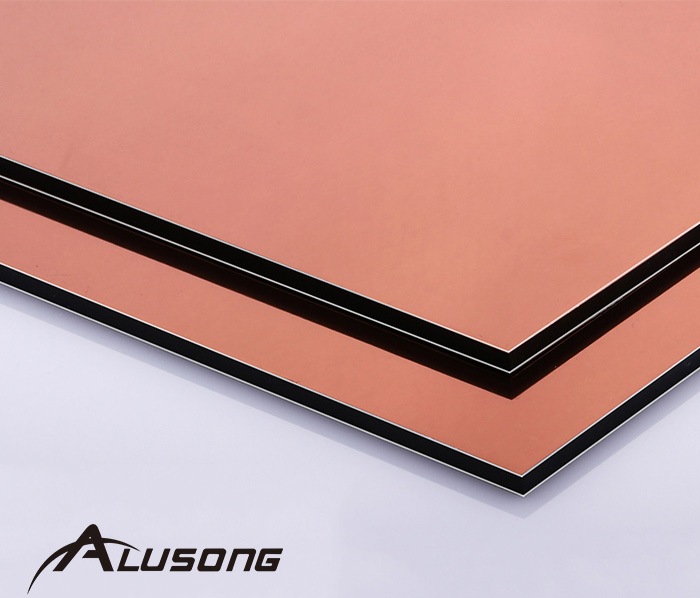

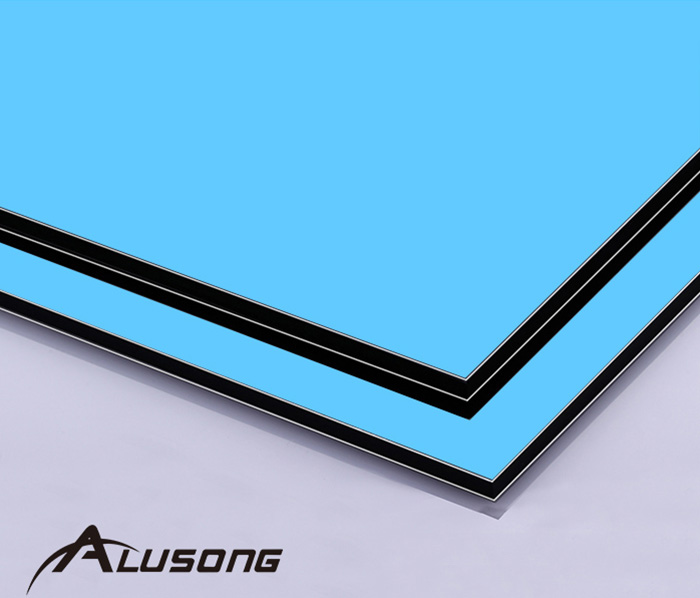

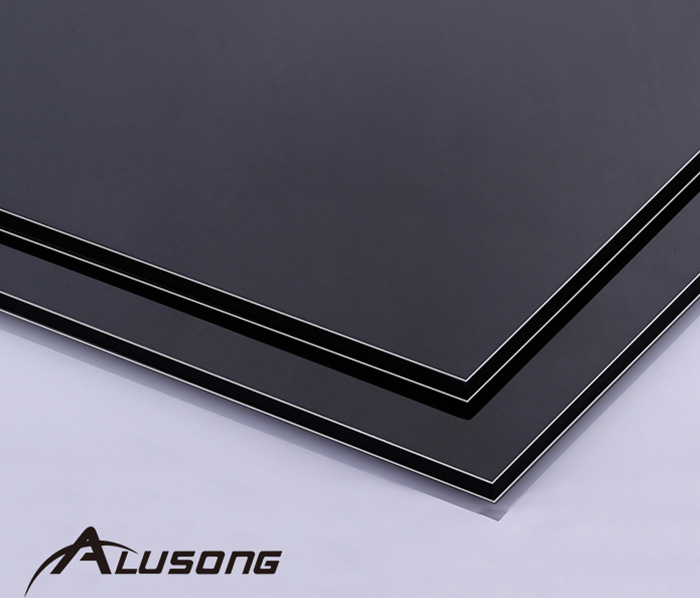

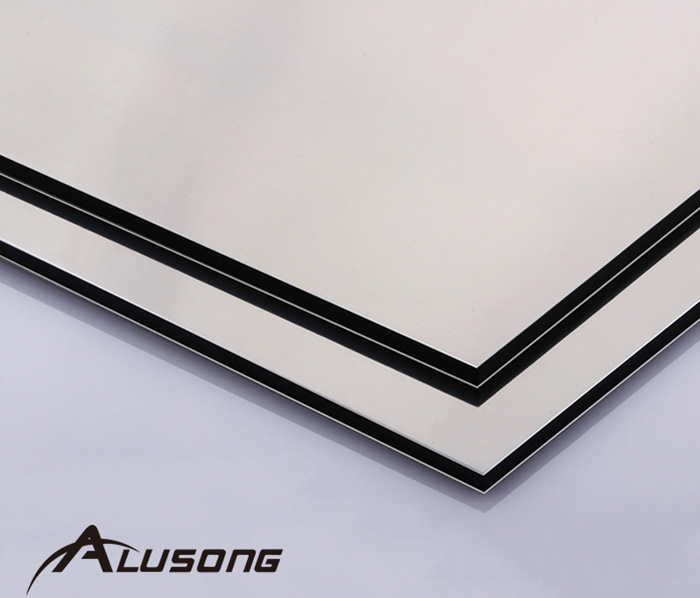

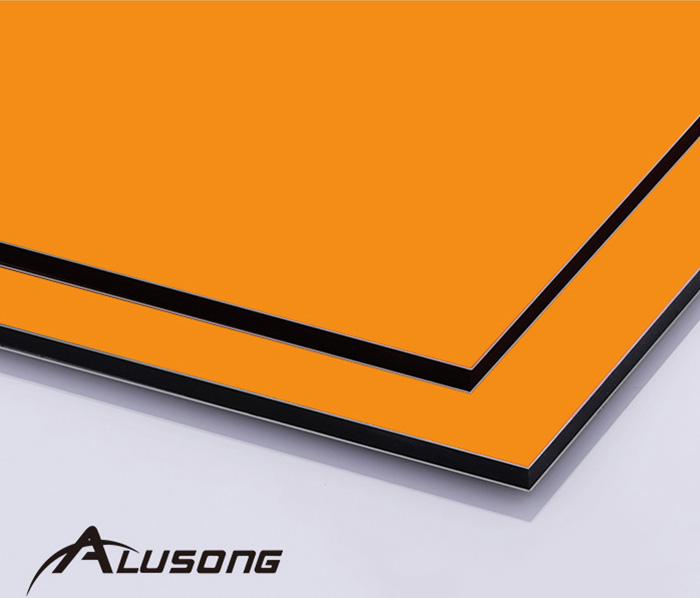

Alusong Signage- Glossy

Alusong Signage- Glossy

ALUSONG glossy aluminum composite panel is a new composite material skinned with high glossy aluminum sheets. Compare to the common panel, our engineer improve the product’s surface gloss ,so it bring a vivid new look to the customers, which are very popular recently, especially are welcomed by the majority of designers. Now the high gloss pa...
分享
0
  • 顏色和表面
  • 產品范圍
  • 產品屬性
  • 產品應用
  • 技術數據
顏色和表面

ALUSONG Glossy coating, with polyurethane as base and fluoride polymer as top coating, has good feature of weather resistance of 10 years for interiors use. Different from Polyester coating, it guarantees fresher, vivid color and higher gloss level, provide more choice for designer. It is available in colors that are not feasible with other coating system.



產品范圍
Aluminum         AA1100  AA3003
Aluminum skin0.15mm,0.21mm,0.30mm,0.35mm,0.40mm,0.45mm,0.5mm
Panel thickness2mm, 3mm,4mm,5mm,6mm
Panel width1220mm,1250mm,1500mm
Panel length2440mm,3050mm,4050mm
Surface treatmentGlossy Polyester
Colors70 colors, special colors available upon request
Customers sizeaccepted
Glossy20%-80%


Dimensional tolerance:

Panel width: ±2mm        Panel length:±3mm

Panel thickness: ±0.2mm    Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.01mm


產品屬性
Alusong Signage- Glossy

Vivid colors

High resistance to peeling

 Superior weather resistance

 Light weight and easy to process

 Coating evenness

 Diversified colors

 Easy for maintenance

 Impact resistance


產品應用

· Sign Making, Shop Front

· Furniture &cabinets

· Standoff Lettering

· Interior decoration

· Cladding&facade

· Modular Sign Systems

· Exhibition Design


  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
技術數據
DescriptionTest standardPolyester
Thickness of coatingPolyester paint >=16um16um to 18um
Coating flexibility (T-bend)Polyester paint≥3T3T
Color differentΔE≦2.0(follow color sample)ΔE≦2.0
Pencil hardness≧HB≧2H
Chemical resistance2%HCI or 2%NaOH test in 24 hours -No changeNo change
Coating adhesion≧1grade for 10810mm2gridding test1grade
Resist solvent100times with Dimethylebnzene without changeNo change
Boiling water resistance2 hours without changeNo change
Peeling strength/stripping strengthAverage ≧5N/mm of 180oc peel off for panel with 0.21mm alu.skin5N/mm
Impact test for paint20KG.cm impact-paint no split for panelNo split
Abrasion resistance (L/Mil)NILNIL
Temperature resistance-40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropprate≦10%Change of glossy only,no paint Peel off
Cofficient of linear Thermal Expansion100℃ temperature difference2.4mm/n
Detergent resistance (3%)ASTM D2248No change
Humidity Resistance (3000hrs,100%RH,100°F)ASTM D2247No change
Salt spray resistance (3000hrs,5% salt)ASTM B117No change
Resistance to Staining600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference ≦4.0No change
