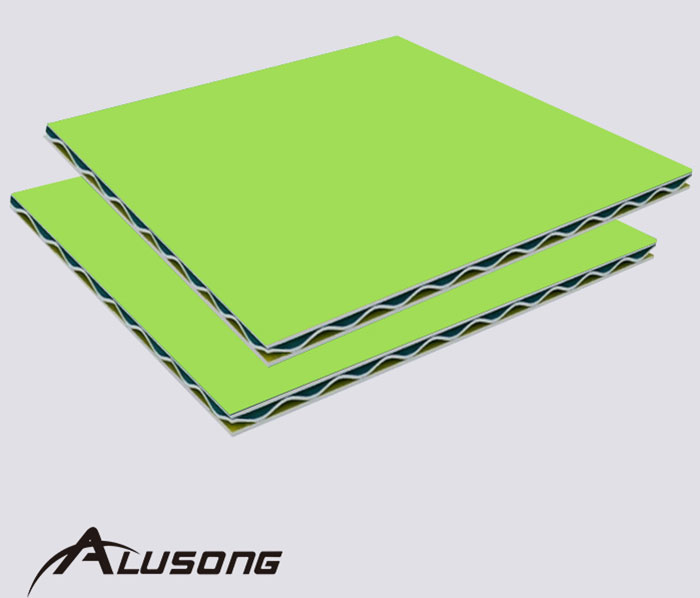

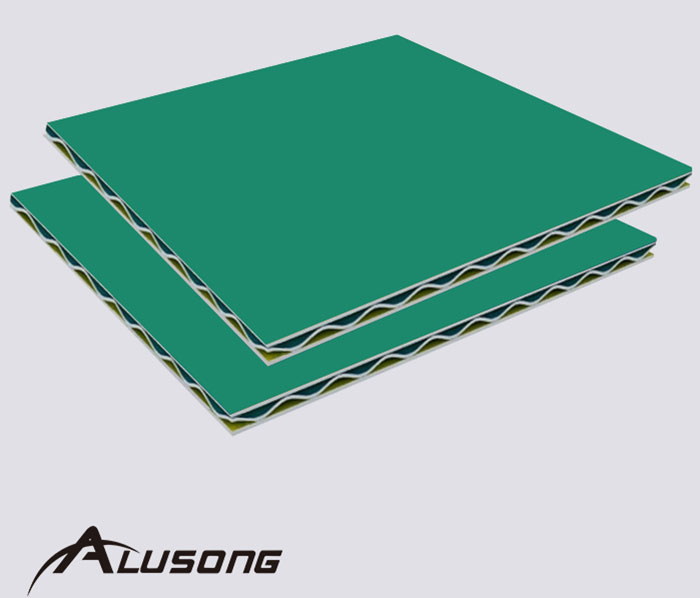

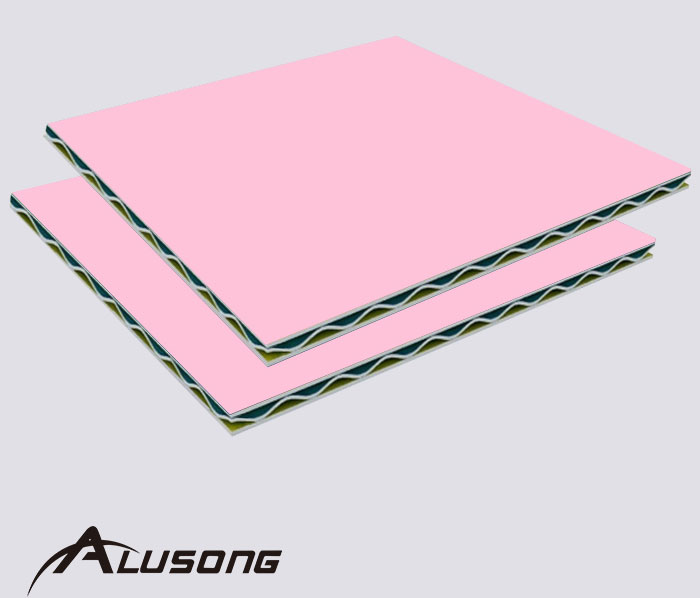

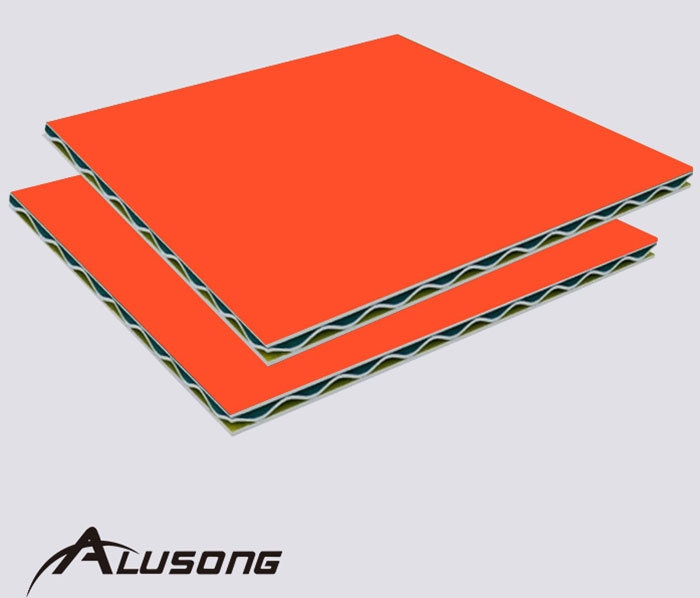

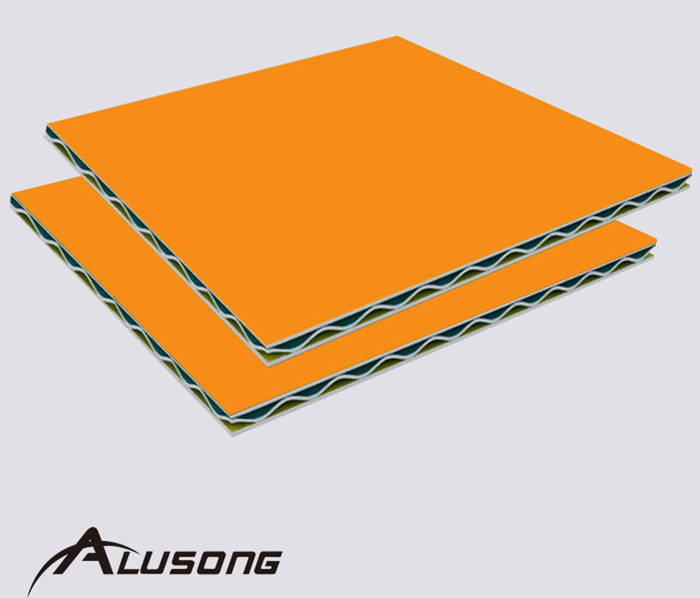

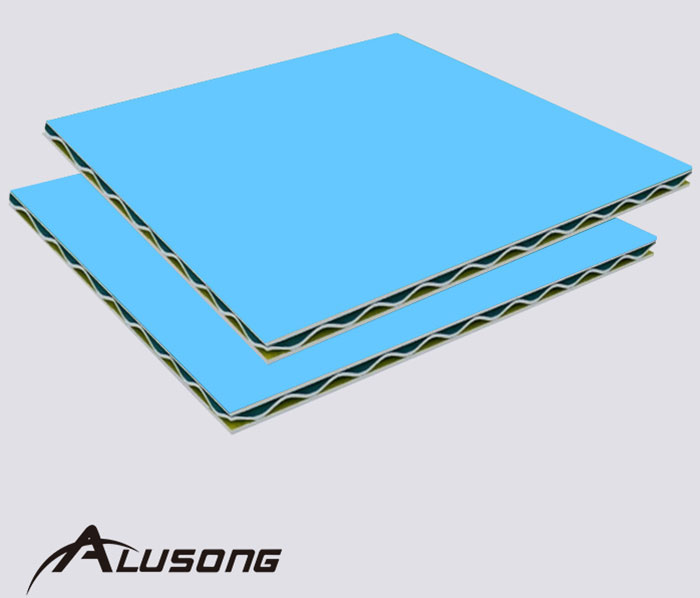

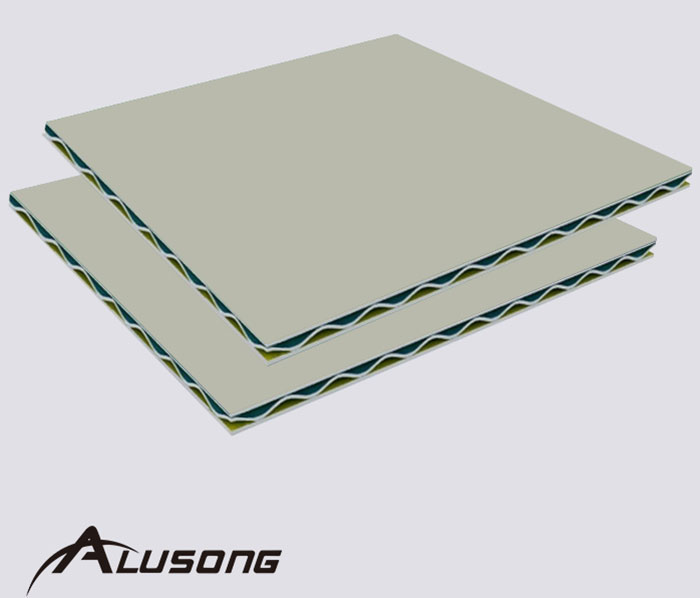

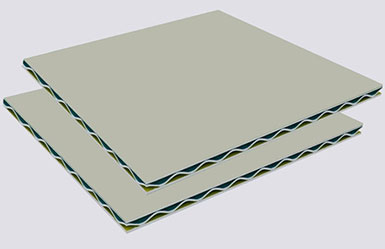

ALUSONG Corrugated panel uses PVDF coating system for exterior facades, using quality paint and aluminum coil. Warranty can be 15-20 years for exterior use. Metallic & solid color,NANO, wood, stone, brushed,spectra, unlimited color are available.
Aluminum alloy | AA3003 AA5005 |
Aluminum skin | 0.40mm,0.45mm,0.5mm, 0.7mm,1mm |
Panel thickness | 4mm,5mm |
Panel width | 1220mm,1250mm,1500mm |
Panel length | 2440mm,3050mm,4050mm |
Surface treatment | PVDF |
Colors | 70 colors, RAL & PANTONE colors upon request |
Customers size | accepted |
Glossy | 20%-80% |
Panel width: ±2mm Panel length:±3mm
Panel thickness: ±0.2mm Panel diagonal: ≤5mm
Aluminum sheet thickness: ±0.01mm
1. Unlimited colors; warranty up to 15 years
2. Light weight caldding material on the market
3. High performance with low cost
4. Non-combustibility, A2 FR
5. Recycled environmentally friendly product.
6. Perfect flatness with its special structure
1. Exterior curtain wall
2. Interior wall decoration
3. Interior ceiling decoration
4. Back boards for natural stone panel
5. New materials for furniture
-
Application
-
Application
-
Application
-
Application
-
Application
-
Application
Light weight:

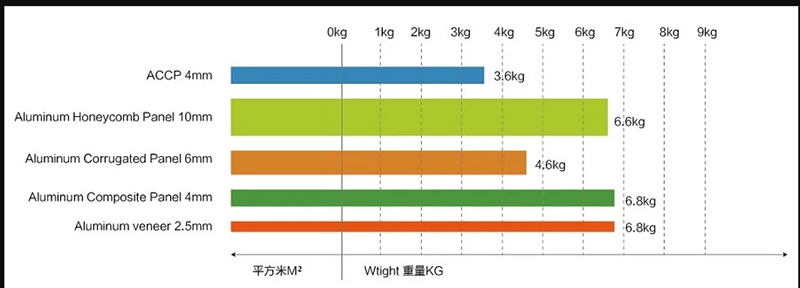

4mm(0.5/0.4) ALUSONG Corrugated panel weight is 3.6kg/m2 which is lighter compare to other material such as Aluminum solid panel etc. , hence could decrease the loading of the building, reduce he construction basement and other cost.
TestingParty | TestStandard | ALUSONGCorrugated panel | Results &Classification |
TUV | BS476 Part 7 | 4mm | Class 1 |
BS476 Part6 | 4mm | Index 0 | |
BS476 Part4 | 4mm | NON-COMBUSTION | |
SGS | DIN4102 Part 1 | 4mm | Class A2 |
EN13501 | 4mm | Class A2,s1,d0 | |
Intertek | ASTM E84 | 4mm | Flame 0Sm.Deve index10 |
China | GB8624-2012 | 4mm | Class A2,s1,d0 |
AU | AS1530.1-1994 | 4mm | NON-COMBUSTION |
AS1530.3-1999 | 4mm | Ignitability Index 0Spread of Flame Index 0Heat Evolved Index 0Smoke Developed Index 1 |
