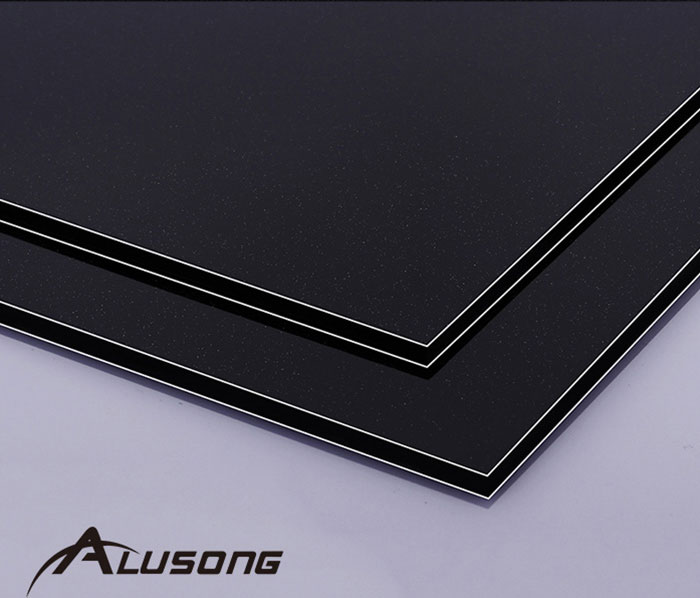

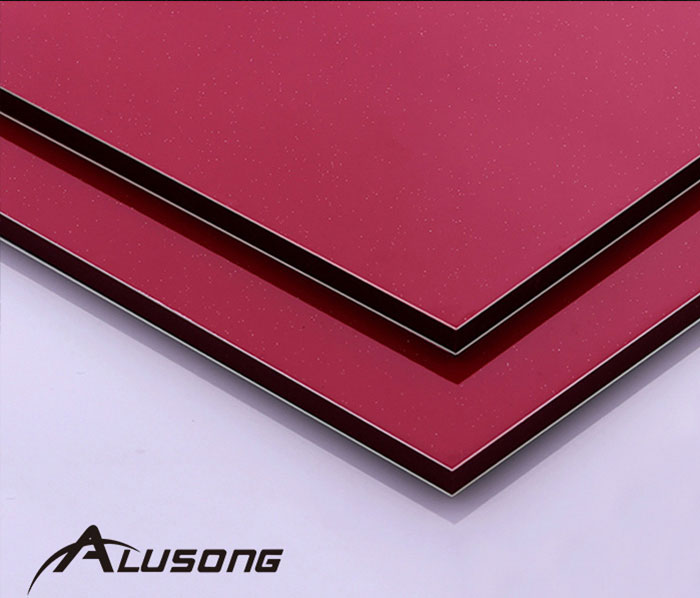

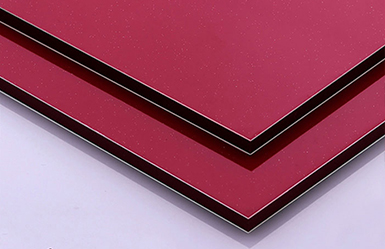

ALUSONG Spectra colors coating, add pearl talc into PVDF paint(>70% PVDF), depending upon the pigment type and viewing angle, different wavelengths of light are reflected, refracted and diffracted to the audience resulting in an ever-changing color gradient with iridescent highlights. It is widely used for public internal and external, multiply shops, exhibitions etc.
Raw material:
Base material: high strength aluminum alloy sheet
PE core material: non-toxic low density polyethylene
Surface coating: spectra coating
Back coating: primer coating
Aluminum alloy | AA1100 AA3003 AA5005 |
Aluminum skin | 0.21mm,0.30mm,0.35mm,0.40mm,0.45mm,0.5mm |
Panel thickness | 3mm,4mm,5mm,6mm |
Panel width | 1220mm,1250mm,1500mm |
Panel length | 2440mm,3050mm,4050mm |
Surface treatment | SPECTRA |
Colors | 70 colors, RAL & PANTONE colors upon request |
Customers size | accepted |
GLOSSY | 40%-80% |
Panel width: ±2mm Panel length:±3mm
Panel thickness: ±0.2mm Panel diagonal: ≤5mm
Aluminum sheet thickness: ±0.02mm
Optional
In accordance with optical elements, the spectra aluminum composite panel use the light’s reflection, diffraction, refraction and absorption. These color effects have fascinated motivated, triggered emotions and had an effect on man’s feeling since time immemorial.
Sensory Theme
Depending on the type of pigment and viewpoint, different, color enchanting effects with highlights and color iridescent gradients appear.
Design exertion
The special aluminum composite panel has a series of glosses and sharps to meet the designer’s needs of originality of design, and achievers perfect results.
1. Wall curtain, Cladding and Facade
2. 4s car shops,commercial malls
3. Modern buildings
Description | Spectra |
Coating rididity | ≥2H |
Coating flexibility (T-bend) | 2T |
Boiling water resistance | No change after 24hours |
Alkali resistance | No change |
Acid resistance | No change |
Solvent resistance | No change |
Washing resistance | No change after 1000 times |
